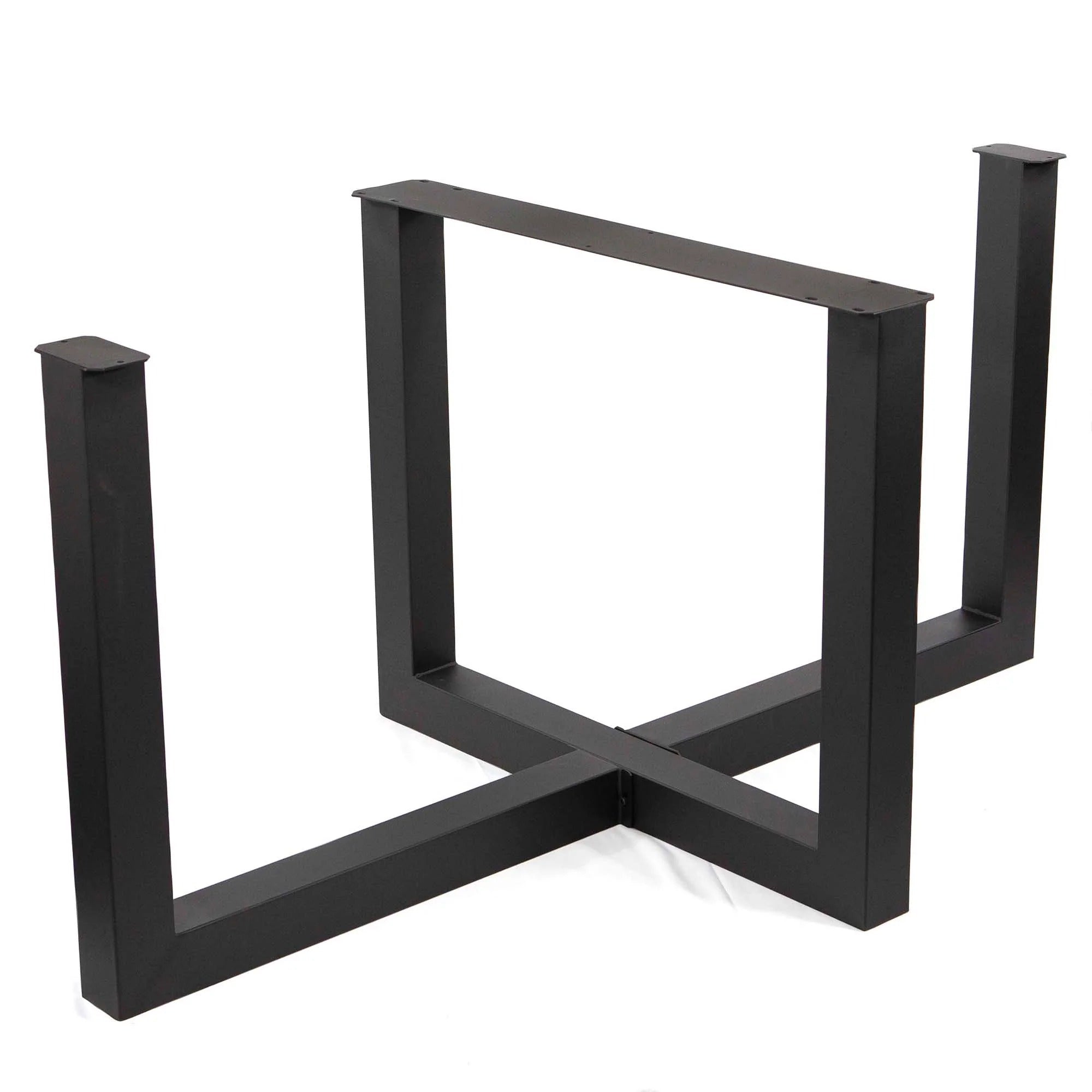

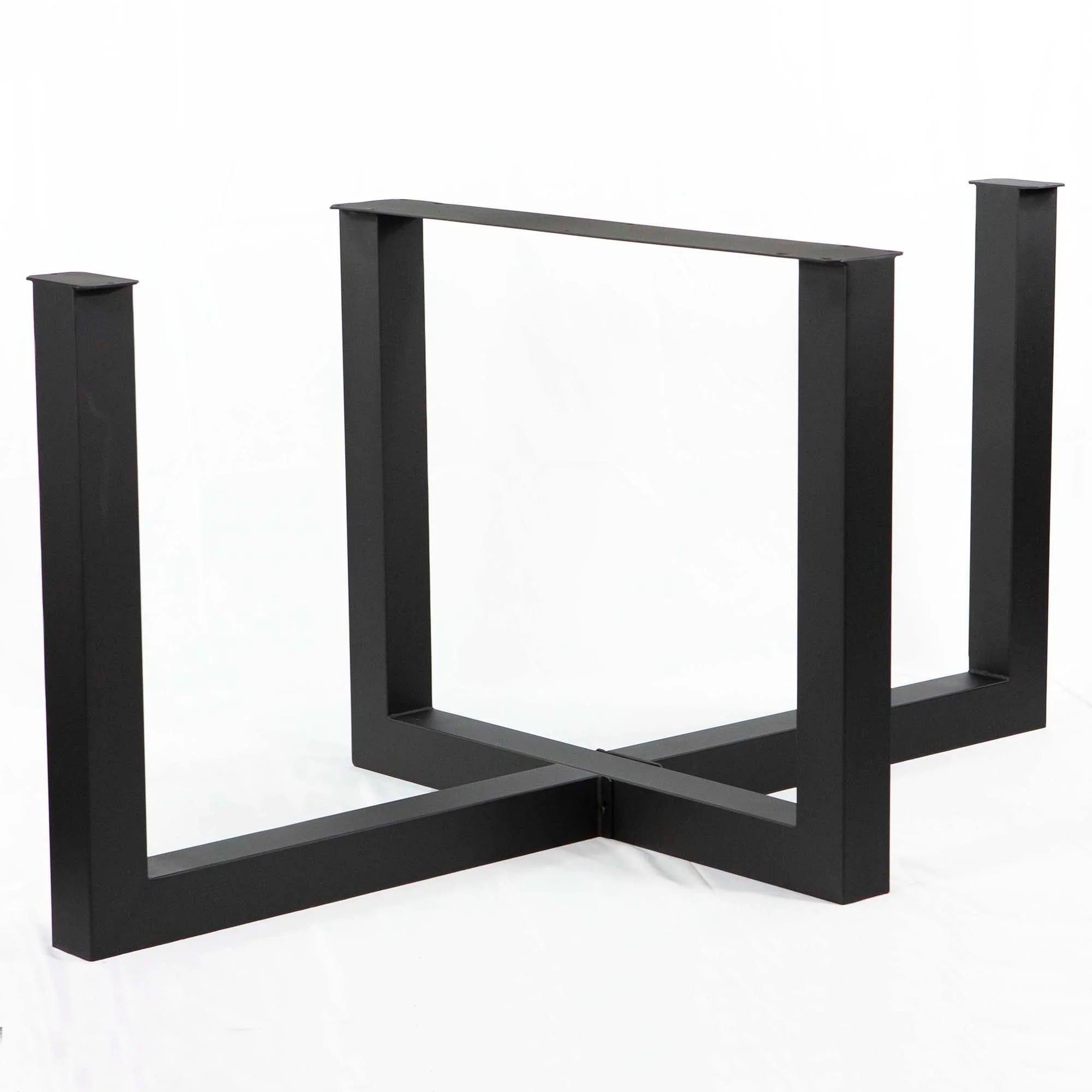

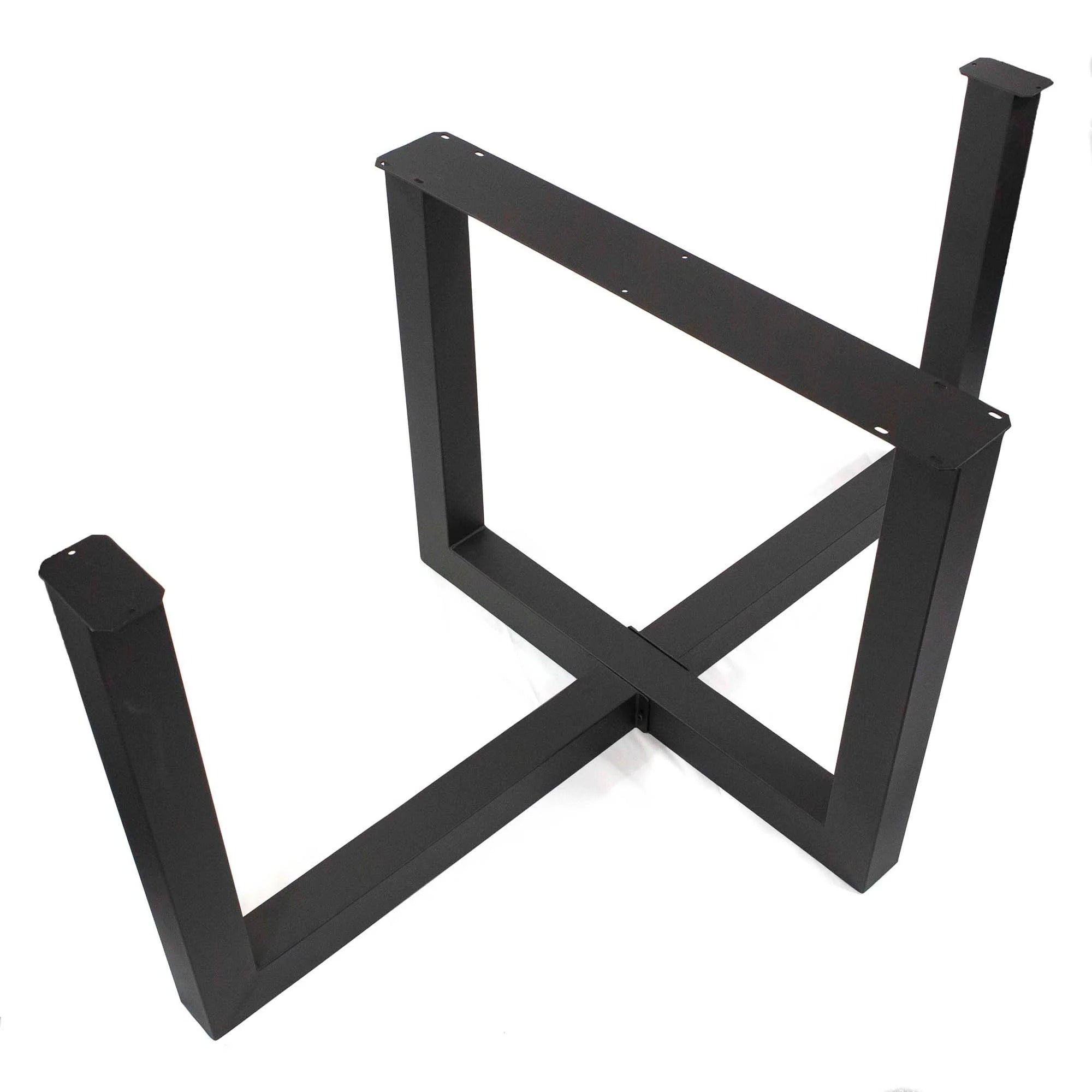

SS1415 - Cross U-Shaped Dining Table Base, Made in 3"x3" Tubing,
| Description | Cross U-Shaped Dining Table Base |
|
Suitable for Dining Table
|
|
| Screws not incl | |
| Product weight | 32kg |
| Capacity | 300kg comfortable |

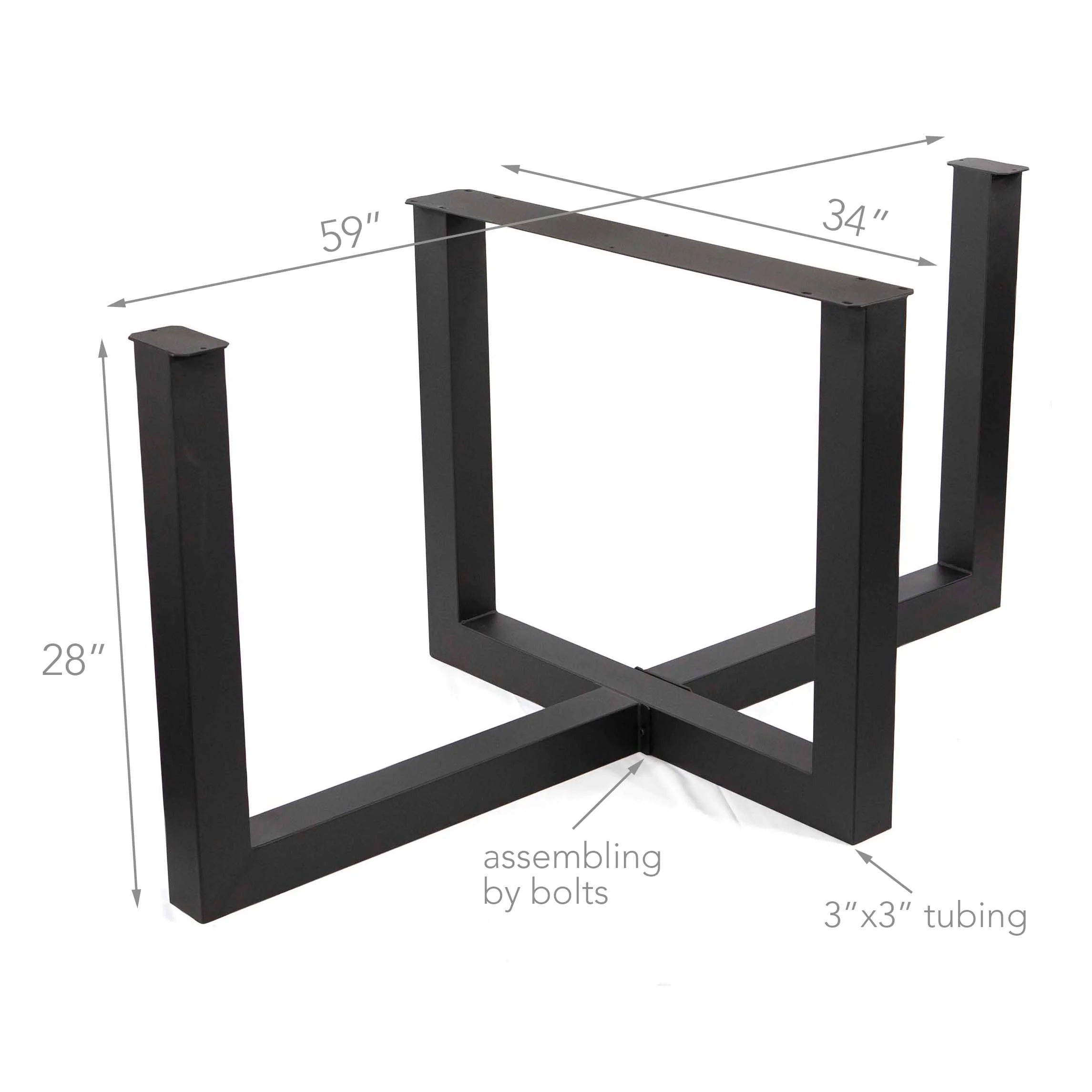

| Height | 71.1cm |
| Top Size | 149.86cm long x 86.36cm wide |
| Bottom Size | 149.86cm long x 86.36cm wide |
| Material | Steel tube 7.5 x 7.5cm, with 0.15cm thick |
| Finish |
Matt black powder coated; |
| Top plate |
Large palte: 12 x 86.4cm, 0.3cm thick Small palte: 12 x 7.5cm, 0.3cm thick |
|
Suitable for Dining Table, under 274cm x 115cm. Come in 5 pieces, assemble works needed. |
The base come with adjustable levelling feet. However they can still be used without them as the bottom of leg is flat.
Designed for custom furniture projects, these table legs provide a versatile foundation for everyday use home tables and commercial furniture. Their timeless industrial styling pairs effortlessly with a wide range of tabletop materials, suitable for both modern and classic interiors.
Key Features
- Heavy-Duty Steel Construction - Exceptional strength and durability
- Modern Industrial Design - Clean, timeless styling
- Durable Powder-Coated Finish - Scratch and corrosion resistant
- Pre-Drilled Mounting Plate - Fast and secure installation
- Adjustable Levelling Feet - Improved stability on uneven floors
Suitable For
- Solid timber tables
- Epoxy resin tables
- Marble and stone tabletops
- DIY furniture projects
- Commercial fit-outs
We aim to make your shopping experience as smooth as possible.
- All orders are shipped from our Nottingham warehouse, with products stocked locally for fast nationwide delivery.
- Orders are typically dispatched within 1-3 business days.
- Standard shipping (via Yodel, DX, Royal Mail, Evri, etc.) is estimated to arrive within 1–5 business days.
- UPS and DHL shipping is estimated to arrive within 1-3 business days.
- Shipping costs are calculated automatically at checkout based on your order's weight and delivery location.
For full shipping information, please visit our Shipping Policy.
We offer a 30-day refund and exchange policy.
To be eligible for a refund or exchange, items must be returned within 30 days of purchase in their original condition and packaging. Once your return has been received and inspected, we'll process your refund or replacement.
For complete details, please see our Refund & Exchange Policy.
Installing your table legs or table base is quick and easy.
Step 1 – Position the Table Base
Place the table base upside down onto the underside of the tabletop.
Step 2 – Mark the Screw Locations
Using a pencil, mark the screw hole positions through the mounting plate
Step 3 – (Optional) Pre-Drill Pilot Holes
For hardwood tabletops, pre-drilling pilot holes is recommended.
Pilot hole diameter should be slightly smaller than the screw diameter.
Do not drill through the tabletop
Step 4 – Install the Screws
Insert the supplied screws through the mounting holes and tighten them evenly.
Do not fully tighten one screw before installing the others.
Gradually tighten all screws until the base is securely attached.
Do not overtighten the screws, as this may damage the tabletop.
Step 5 – Turn the Table Upright
With the assistance of another person, carefully turn the table upright.
Do not drag the table by the tabletop or base.
Lift the table when moving it.
---------------------------------------------------------------------------------
Most our table legs and table bases come with adjustable levelling feet to help compensate for uneven floors. If preferred, the levelling feet can be left off, as the flat base of each leg allows them to sit securely on the floor.
Q: Do you offer custom orders?
A: We apologize but there are no custom orders at this time for retail customers. We do offer custom orders for wholesale customers, please contact with us via email.
Q: Do your products come with a warranty?
A: If your order arrives damaged, faulty, or significantly different from the product description, please contact us within 30 days of delivery and provide clear photos of the issue. Our team will review your request and work with you to resolve it as quickly as possible.
Q: Are floor-protection accessories included?
A: Yes. Adjustable feet are included to help protect your floor and level the table on uneven surfaces. The mounting holes are M8, so the adjustable feet can also be replaced with compatible castors if required.
Soft protective pads are also included as an alternative for customers who prefer a lower-profile appearance without the adjustable feet.
Q: Can the legs be used outdoors with a marble tabletop?
A: Yes. The table legs are powder-coated and suitable for outdoor use. However, prolonged exposure to harsh weather, moisture, or coastal conditions may affect the finish over time, so we recommend keeping the table covered or sheltered when possible.
For marble, stone, or porcelain tabletops, we recommend installing an MDF or plywood mounting board between the tabletop and the table legs or base. Secure the board to the legs with screws, then attach the tabletop to the board using a suitable construction adhesive. Please consult your tabletop supplier or a professional installer to confirm the appropriate adhesive and installation method.
